Product Introduction
PRB0400 is a bridge chip that realizes the conversion of RapidIO Gen2 to PCIeGen2 protocol, RapidIO protocol is a packet switching interconnection protocol designed for the needs of high-performance embedded systems, the existing x86 and other CPUs do not support RapidIO interface, and can only be connected to the RapidIO switching network through PCIe to RapidIO bridge. PRB0400 can realize the conversion and bridging of RapidIO to PCIe protocol, providing a perfect solution for mainstream CPUs to access RapidIO networks.
Product Features:
Package information
Type: FC-PBGA; Size: 29x29mm; Number of Balls: 784; Ball diameter: 0.6mm, Ball pitch: 1.0mm.
Protocol Specifications
Compliant with the RapidIO 2.1 specification and backwards compatible with the RapidIO 1.3 specification.
Port characteristics
48 full-duplex channels of SerDes with up to 18 ports, supporting 4x, 2x and 1x, supporting 1.25/2.5/3.125/5/6.25 Gbaud rates.
Swap features
The non-blocking switching fabric supports unicast and multicast, supports priority throttling, and has a peak throughput of 240 Gbit/s.
Networking features
It supports large-scale networking enumeration, remote maintenance and management, and remote event reporting and fault recovery.
Error management
Error detection and recovery, congestion management, and hot-swappable support are supported.
Configuration management
Support maintenance package access, IIC interface, JTAG interface.
Diagnostic monitoring
It supports PRBS and BIST, multiple loopback modes, rich diagnostic information such as packet statistics, and packet tracking and filtering.
Application scenarios
Typical applications for cabinet interconnection
Wireless base station signal processing applications
Video image application
Medical imaging applications
Related ancillary products and solutions
With the mission of serving the country in the integrated circuit industry and the core values of "innovation, openness, altruism, and long-term", we adhere to the two-wheel drive strategy of independent research and development and market-oriented operation, open up a new blue ocean market, and strive to be the leader of core chips in China's new infrastructure.
RapidIO Rapid Configuration Software
RapidIO Quick Configuration Software is designed to guide users to quickly learn and use the various functions of the NRS1800 switch chip, which greatly accelerates the customer's application and development time, such as reducing the commissioning time from 1 month to 1 week or even a few days. The software can be used NRS1800 evaluation boards, OPT test boards, or customer boards.
Unfold.
NRS1800 OPT evaluation board
NRS1800 OPT performance test board is used to evaluate the function and performance of NRS1800 switching chips, with a switching capacity of 240 Gbit/s, and can also be used to build a user networking test platform to support Tb's RapidIO switching network.
NRS1800 evaluation board
NRS1800 evaluation board is used to evaluate the Serdes performance, switching performance and various functions of the chip, providing users with a platform with stable performance, convenient debugging, flexible interfaces and diverse configuration methods. NRS1800 evaluation board is used to evaluate the Serdes performance, switching performance and various functions of the chip, providing users with a platform with stable performance, convenient debugging, flexible interfaces and diverse configuration methods. NRS1800 evaluation board is used to evaluate the Serdes performance, switching performance and various functions of the chip, providing users with a platform with stable performance, convenient debugging, flexible interfaces and diverse configuration methods.
Unfold.
NRS1800 national production solutions

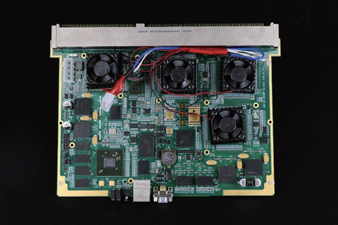

United States of America, Centa, Loongson and other chip manufacturers have launched a national production solution for VPX interchange series boards with NRS1800 switching chips as the core, and completed the verification of the solution based on the 6U OpenVPX architecture SWH-6U-20U19F specification.
Software-Defined Interconnect SDK companion tool
RapidIO network deployment and management software helps customers remotely deploy and manage RapidIO switching networks, realize intelligent and visual routing configuration and network monitoring, and greatly improve work efficiency, add new functions and reduce costs.
RapidIO network deployment and management software
RapidIO network deployment and management software helps customers remotely deploy and manage RapidIO switching networks, realize intelligent and visual routing configuration and network monitoring, and greatly improve work efficiency, add new functions and reduce costs.
