Product Introduction
CTC8096 (GoldenGate) is a high-performance Ethernet switch designed for high-density 10GE/40GE applications. The unique "Lingyun" design of the chip integrates a number of application innovations, including "Cloud Vision", "Cloud Resilience", "Cloud Surge", "Cloud Leap" and "Cloud Knowledge", providing a highly competitive hardware acceleration solution for network virtualization applications.
CTC8096 inherits rich features, including basic L2 and L3 applications to various advanced and complex networking functions, which also makes CTC8096 ideal for convergence applications of various complex networks.
CTC8096 provides up to 96 x 10GE interfaces, or 24 x 40GE, or 80 x 10GE + 4 x 100GE. Its SerDes is designed to meet multiple port protocols: SGMII/XAUI/DXAUI/XFI/SFI/10G-KR/40G-KR4/100G-KR4.
Figure 1: CTC8096 (GoldenGate) chip
CTC8096 can be flexibly configured for different working modes, typical as follows:
• 48x10GE+12x40GE
• 80x10GE+4x100GE
• 96x10GE
• 24x40GE
Target application
• Top-of-rack (ToR)/core switches
• Enterprise network aggregation/core
• TAP
Product Features:
Cloud Vision
• On-chip traffic tracking
• VM-aware business processing
• Elephant flow monitoring
• Software-defined counting
Cloud toughness
• LAG and ECMP intelligent flow self-healing
Cloud surge
• DCTCP/HULL
• ECMP intelligent path protection
• Optimal flow scheduling
• Dynamic load balancing (elephant flow awareness)
Cloud Leap
• VXLAN, VXLAN-GPE
• NVGRE
•GENEVA
Yunzhi
• Dynamic cache utilization monitoring and analysis
• Dynamic time-lapse monitoring and analysis
• Burst flow monitoring and analysis
• Waterline recording and analysis
Secure/Enterprise Network
• IPv4/IPv6 dual-stack forwarding
• VLAN/MAC/Port/IP Binding
• MAC filtering
• 802.1x port-based access control
• 802.1x MAC-based access control
• Port isolation
• CPU traffic protection
• Port unicast/multicast/broadcast storm control
Metropolitan Ethernet/PSTN/IPRAN
•802.1ag/Y.1731 Ethernet OAM
• G.8031/G.8032 Ethernet service protection
• G.8113.1/G.8113.2 MPLS-TP OAM
• G. 8131/G.8132 MPLS-TP service protection
• IEEE 1588 v2，OC/TC/BC， Supports 1-step and 2-step
• Synchronous Ethernet
• VPLS/H-VPLS，VPWS

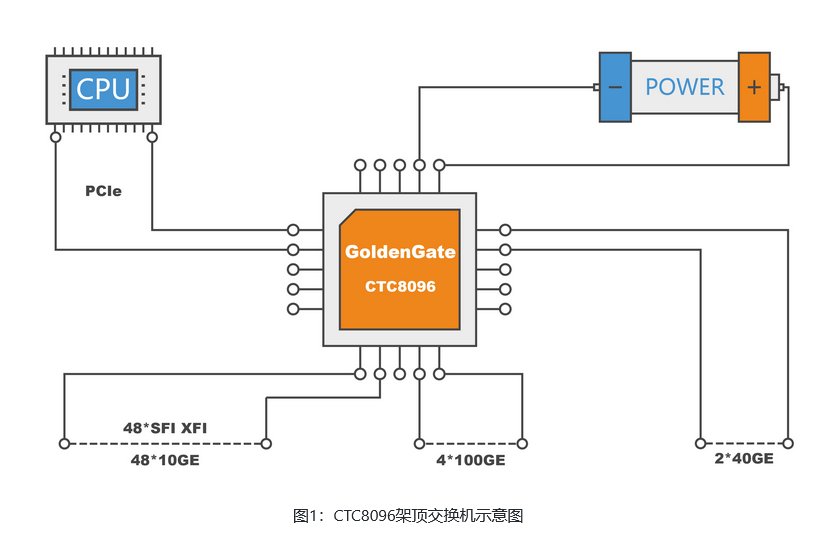

Application examples
