Product Introduction

CTC8180 (TsingMa.MX) is the core network switching chip launched by Centec for the cloud era. CTC8180 will become the connection hub of cloud-network convergence, integrating all the characteristics of enterprise network, bearer network, and access network, and providing infinite possibilities for the future through mortise and tenon programmable technology.

The chip supports 2.4T I/O bandwidth, provides full-rate port capabilities from 1000M to 400G, and has the following leading service features:

• Intelligent network visualization technology

The chip uses hardware to learn, record, and report the chip and traffic status, providing more accurate and detailed visual information for network applications, and greatly reducing the load of CPU traffic analysis, supporting the full implementation of intelligent technology.

• Deterministic network technology

The chip can provide maximum 800G FlexE switching capabilities, support 50G/100G/200G/400G FlexE interfaces, and flexible FlexE group binding. The chip supports SCL L1 crossover, FlexE OAM, and PTP functions, as well as the superimposed protection functions of services and FlexE, as well as deterministic ultra-low latency, to meet latency-sensitive network requirements.

Figure 1: CTC8180 (TsingMa.MX) chip

CTC8180 (TsingMa.MX) can be flexibly configured for different working modes, and the typical configuration is as follows:

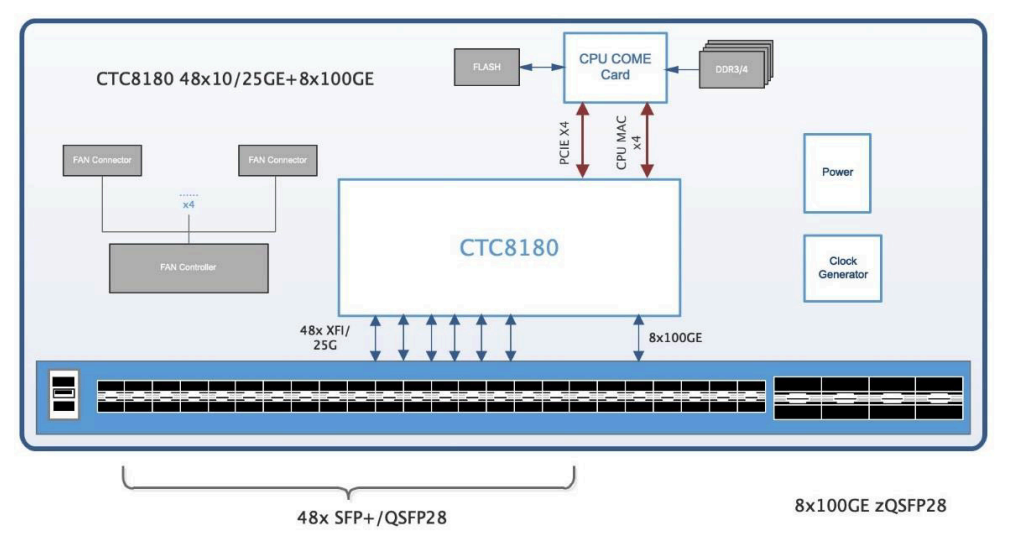

• ToR：48x10G + 6x40G / 48x25G + 8x100G

• Aggregation switches: 16x100G/24x100G/32x100G

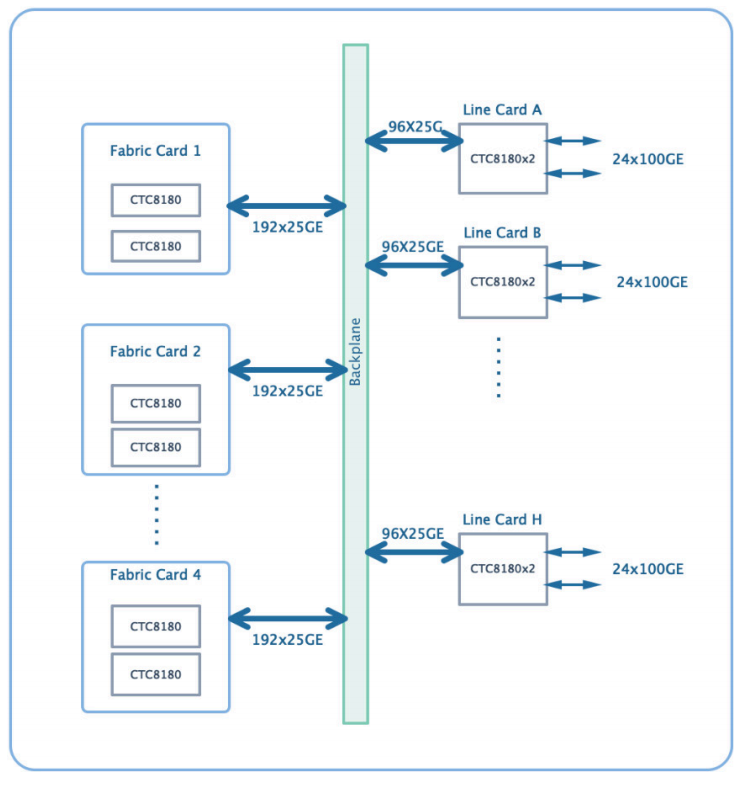

• Core switch: Support CFlex multi-chip interconnection, providing no less than 32T core rack switch solution

• Centralized switches: 3-slot 12xQSGMII/24x10G + 3-slot 8x25G/4x100G

Target application

• Enterprise Network

• Edge computing

Product Features:

Comprehensive network features

• VLAN, MAC, LAG, ECMP, Storm Control, VRF, VXLAN, 802.1BR, etc

• Support lossless transmission technologies such as PFC, ECN, X-PIPE to achieve lossless transmission of RDMA traffic

• Supports wire-rate NAT/NAPT forwarding

• IPv4 and IPv6 dual-stack, ALPM conversion efficiency of 2:1

• L2VPN，L3VPN，L2VPN-L3VPN Gateway

• Segment Routing MPLS，SRv6，SRv6 G-SID

Visual X-Sensor Kit

• Service specification statistics, queue and cache depth statistics, delay distribution statistics, and threshold alarms

• Full-line-rate traffic analysis, which supports packet loss-based traffic learning MoD

• End-to-end path delay analysis, which supports the INT standard protocol and supports hop-by-hop reporting of delay information

Safety features

• Support VLAN/MAC/Port/IP based ACL binding

• Multi-level CPU traffic protection

• SRAM ECC, TCAM SCAN highly reliable operation

Enhanced H-QoS features

• Support for hierarchical policers

• Hierarchical H-QoS support

OAM features

• 802.1ag/Y.1731 Ethernet OAM

• G.8113.1/ G.8113.2 MPLS-TP OAM

• TWAMP

• Ethernet/MPLS-TP service protection and BFD/OAM detection automatic protection switching

FlexE features

• Supports 400G, 200G, 100G, and 50GE hard pipes

• Supports SCL L1 crossover

• Support FlexE PTP and FlexE OAM functions

Clock characteristics

• Supports high-precision IEEE 1588v2 clock synchronization

• Support SyncE synchronous Ethernet

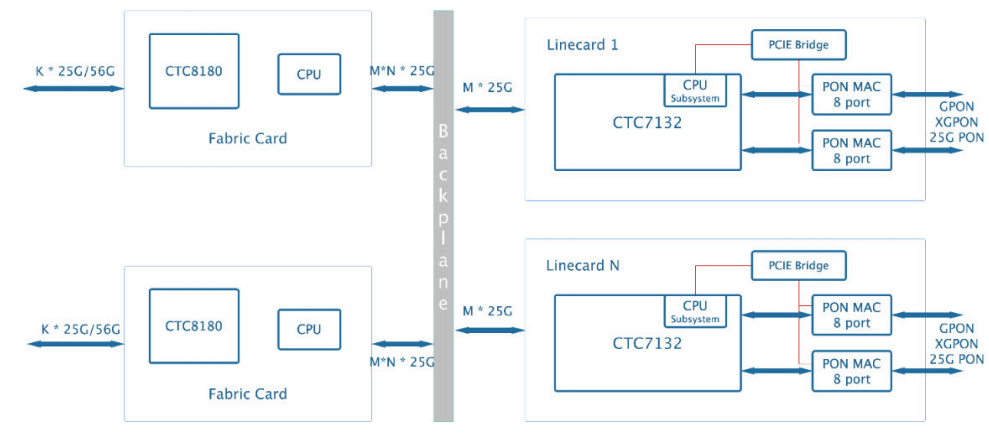

Application examples
