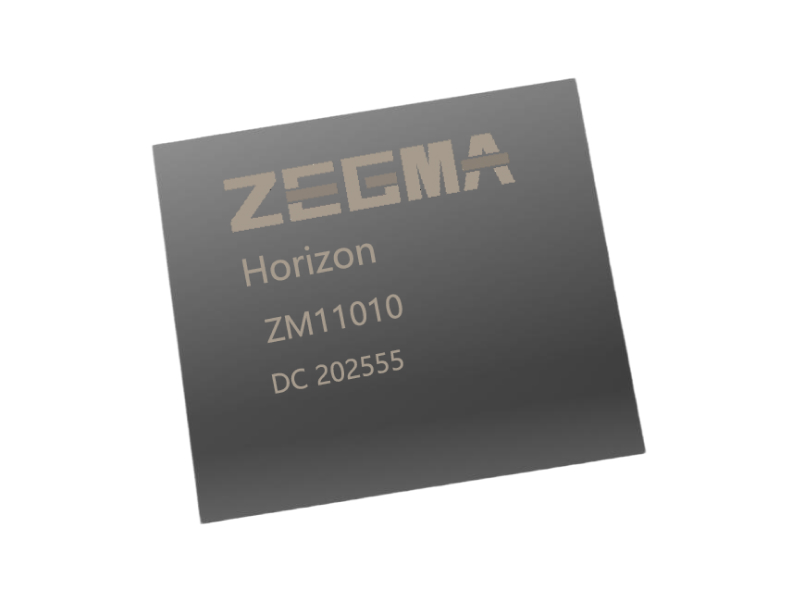

ZM11010 – Single-Port Multi-Rate Ethernet PHY

Next-Gen Connectivity
The ZM11010 delivers triple-speed (10/100/1000Mbps) Ethernet PHY connectivity with:
• X-Range™ technology for 400m @100Mbps over CAT.5e
• Dual-mode MAC interface (RGMII/SGMII)
• Industrial-grade -40°C to +85°C operation

Technical Highlights
▸ Extended Reach

• 400m @100Mbps (4-pair wiring)

• 120m @1000BASE-T

▸ Advanced DSP Engine

• Adaptive equalization & baseline wander correction

• Hybrid echo/crosstalk cancellation

▸ Power Efficiency

• IEEE 802.3az EEE with <0.5W sleep mode

• Integrated regulator reduces BOM by 30%

Key Specifications
• Standards: IEEE 802.3ab/u, SyncE (G.8262)
• Jumbo Frames: Up to 13KB @1G/100M
• Package: 48-pin QFN (6×6mm)

Applications
✔ Industrial IoT ✔ 5G Fronthaul ✔ Pro AV Systems
