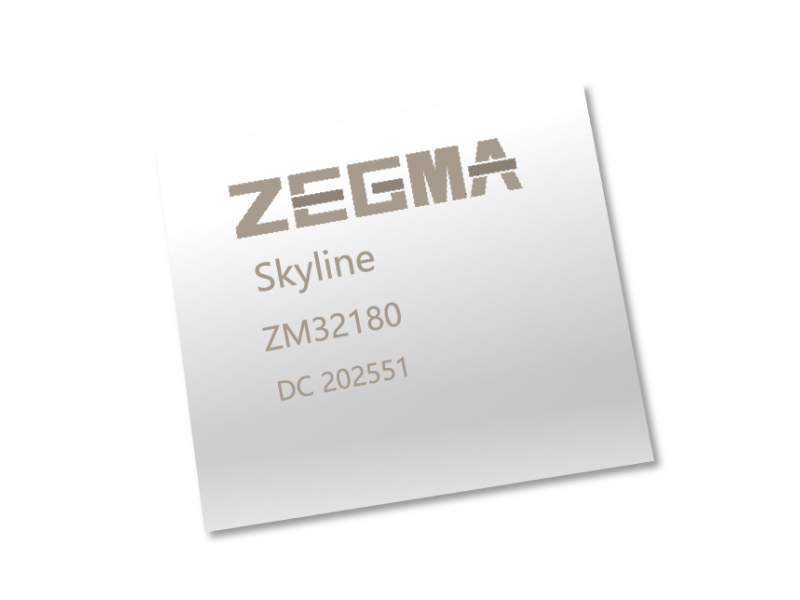

ZM32180

ZM32180 – The Cloud-Edge Intelligence Hub

Next-Gen Edge Switching
Designed for cloud-edge convergence and IIoT, ZM32180 delivers 180G I/O bandwidth and ARM Cortex-A53 dual-core with 100M-10G multi-rate ports, featuring:
• 3x larger flow tables • Sub-μs latency • Pipeline programmability

X-Engine™ Innovations
▸ Telemetry Engine: 3rd-gen visibility unifying buffer/latency/NetFlow monitoring
▸ OAM/BFD Engine: Multi-endpoint detection with RFC2544/Y.1564+TWAMP for carrier-grade PTN/IP RAN
▸ Programmable Tunneling: L2-L4 editing enabling cost-effective vBRAS deployment

Deterministic Networking
• X-PIPE 1.0: Port-level priority scheduling under congestion
• Cut-Through Architecture: 40% lower latency + IEEE 1588v2 (±50ns) sync

Flexible Configurations
• Enterprise Access: 48×1G + 6×10G (VXLAN Bridge to edge)
• Industrial Edge: 16×2.5G + 2×10G (DCB-optimized RDMA)
• Chassis Management: 12×1G/10G hybrid slots (MPLS-TP OAM protection)

Standout Features
• Cloud-Native: Segment Routing+SRv6 service chaining
• Military-Grade Security: 5-tuple ACLs + CPU traffic shielding
• Full Protocol Stack: From L2 storm control to IPv4/v6 translation (6to4/IVI)

Applications
✔ Smart Factory Edge ✔ Enterprise SDN ✔ IIoT Gateways
