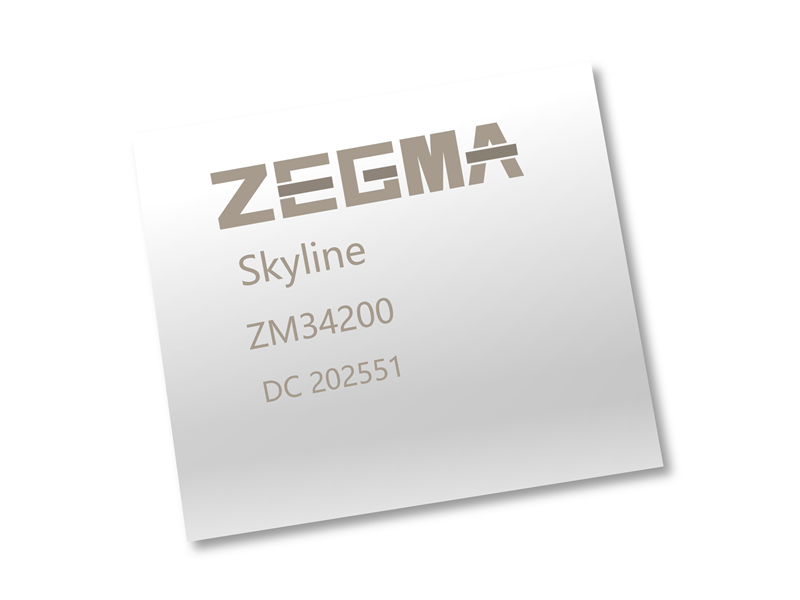

ZM34200

ZM34200 is leading purpose-built switch silicon that can be used to build high density 10GE access and aggregation switch as well as chassis switch in core layer of campus networks. In addition, ZM34200 can also be used to build the ToR switch of data center in service provider. it supports 2.0T I/O bandwidth @256Bytes and 620Gbps@64bytes core bandwidth. ZM34200 equips with 80 of 25G SerDes Lanes. The typical form factor of ZM34200 for ToR switch is 48x25G + 8x100GE. Leverage the integrated C-Flex header, 8120 can provide distributed chassis system by couple with ZM32320/ZM34200 as line card or switch fabric.

ZM34200 is built on the field proven switch architecture to provide the coherent set of complete Layer2/Layer3 switching and routing capabilities, MPLS switching, and VXLAN features.

Features

16MB embedded packet buffer with self-tuning threshold for more evenly and efficient buffer usage.
Enhancedon-chip Flow Tracing Engine for up to 32K flow table of IPIFX，5-tuplet and half AD.
On-Chip OAM engine supporting Ethernet OAM/ BFD/ MPLS-TP OAM/ TWAP/ OWMP, etc…
Embedded Traffic manager providing 8 or 12 basic queues per port. MC and UC queues are independently configured.
Supportlossless Ethernet Protocol such as PFC, ECN, RCoEv2, etc…
Embedded RISC-V core to work as co-processor to offloading several feature operations.
Programmable MACLED interfaces for advanced system
In-band Network Telemetry (INT) integration for Network Telemetry application.
Cut-Through and X-PIPE for low and fixed latency performance.
Support Jumbo Frame up to 9600Bytes.
Segment Routing for IPv6 for next generation visualization of campus network

Application:

Operator access layer
Network edge aggregation
Campus network
