Product Introduction:
The V530 series three-layer Ethernet switch (hereinafter referred to as "V530") is a high-performance 1GE/2.5GE/10GE/25G/40GE/100GE switch built on the Ethernet switching chip CTC7132 independently developed by Shengke. V530 fully supports Openflow1.3 based on OVS and has been widely used in fields such as broadcasting and television. Its powerful full field matching ability and rich and flexible editing ability provide strong support for the smooth implementation of a large number of SDN scenarios.
V530 is equipped with CNOS system software, which supports mainstream protocol standards and applications, making it easy and fast to deploy and manage.
The V530 currently offers the following configuration models: V530-24X2C, V530-24X2Q, V530-48T4X, V530-48S4X, V530-24T8X, V530-16T16XY2Q, V530-48P4X-CM, V530-24P4X-CM, V530-4T12X, V530-6Q2C-BF, V530-48M4Y2Q-BF, V531-48M4Y2Q-BF。
Figure 1: Shengke V530 Series SDN/Openflow Switch
Product Features
Standard 1RU box type equipment
• Up to 880Gbps throughput
• Ultra low power consumption of the whole machine
• Supports OpenFlow 1.3. x/1.4. x versions
• Supports up to 3.5K flow meters
• Support L2 to L4 complete matching domains
• Support multiple behaviors based on a single flow table entry
• Supports two-layer GRE/NvGRE/VXLAN tunnels
• Supports MPLS L2 VPN/MPLS
• Support QinQ
The maximum supported meter ID for meter items is 1000 meters
• Support Group (all/select/ind/fast failover)
• Support queues
• Support Bond
• Support Rmon
• Supports IPFIX
Product Highlights
Adopting high-performance Ethernet core switching chips
The V530 series routing switch adopts the high-performance Ethernet core switching chip CTC7132 from Shengke, which can meet the needs of enterprise networks, hyper converged and other applications.
Rich port forms
Supports multiple port forms such as 1G/2.5G/10G/25G/25G/40G/100G, which can adapt to various network deployment needs.
Green and energy-saving system design
Adopting intelligent fan speed control scheme, supporting real-time power consumption detection, reducing operation and maintenance costs for customers, and creating a green and energy-saving network.
high reliability
On site pluggable modular power supply, supporting AC or DC 1+1 backup; The fan supports 2+1 backup and intelligent speed regulation; Support real-time monitoring of the temperature, power supply, and fan status of the chipset.
Supports features such as LACP/ECMP RSTP to comprehensively and efficiently protect data traffic in the network.
The patented function Sysmon can detect CPU status and take protective measures in case of software errors.
Rich Openflow features
Based on OVS, it fully supports Openflow1.3, with powerful full field matching capabilities and rich and flexible editing capabilities: it supports L2 to L4 full matching domains and supports multiple behaviors based on a single flow table entry.
Product Features:

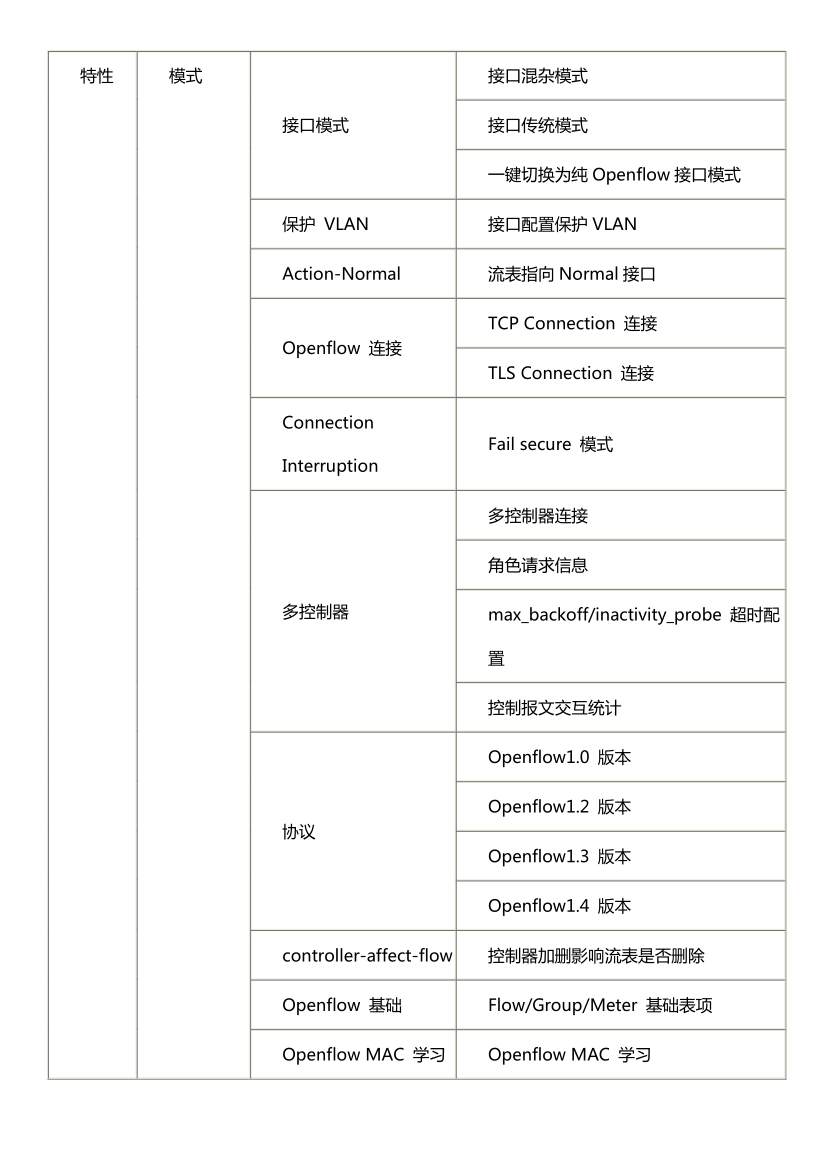

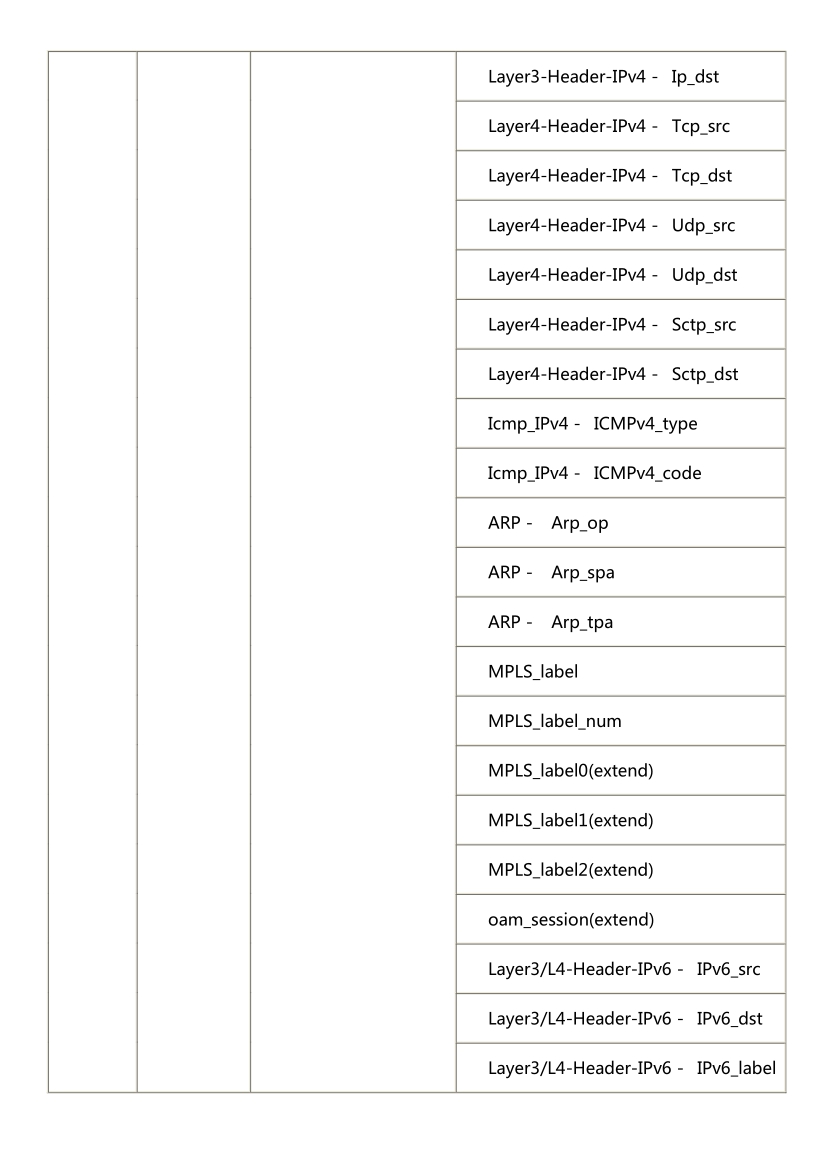

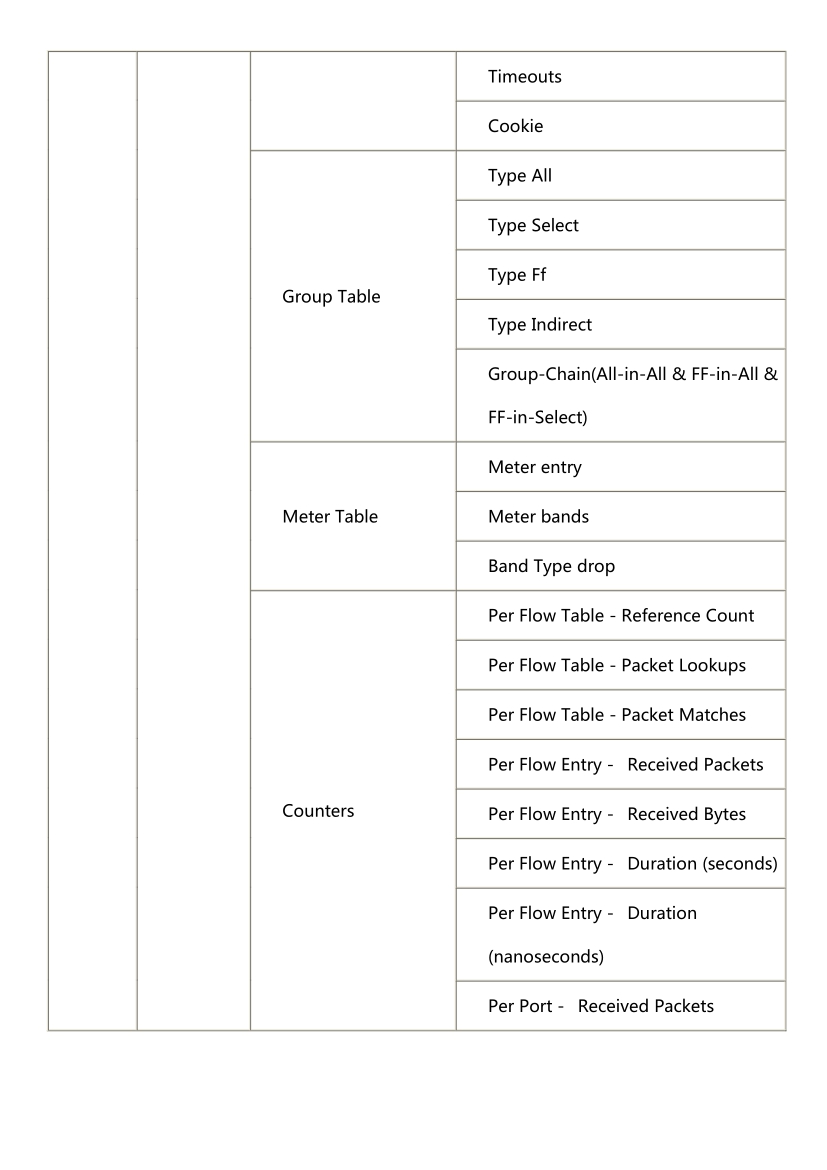

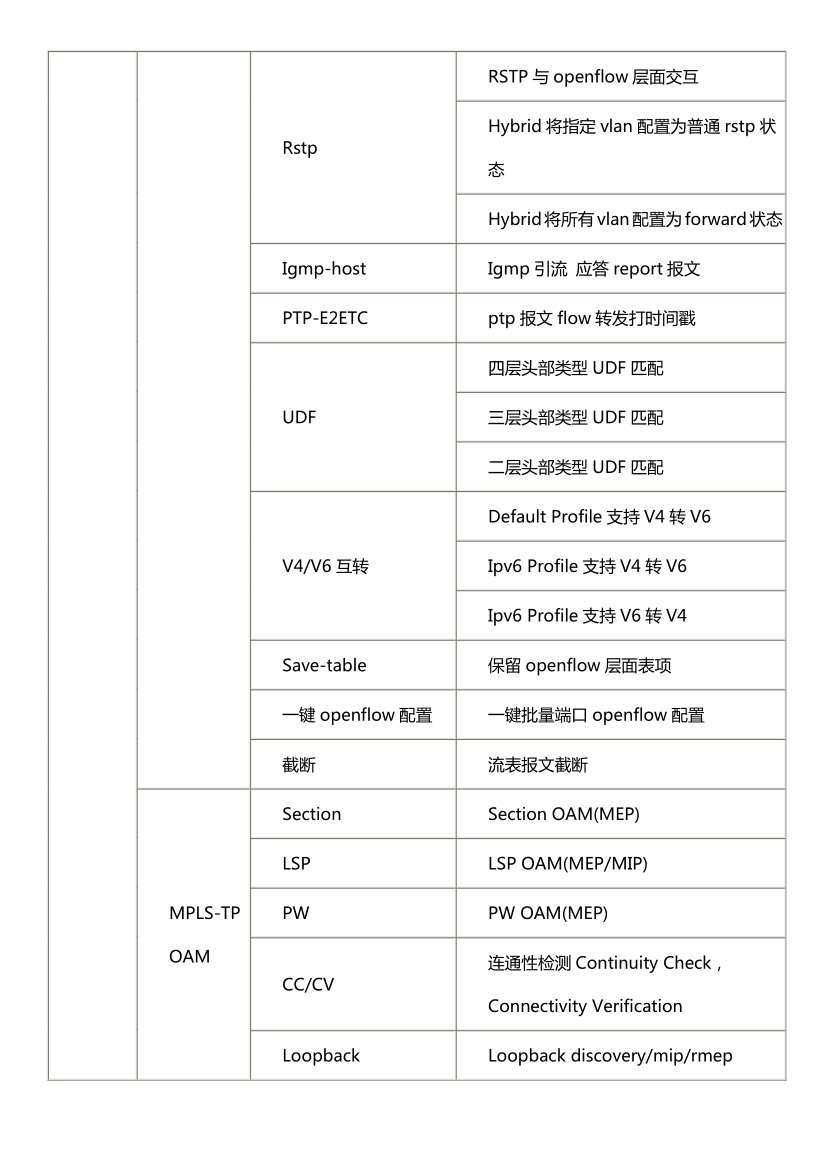

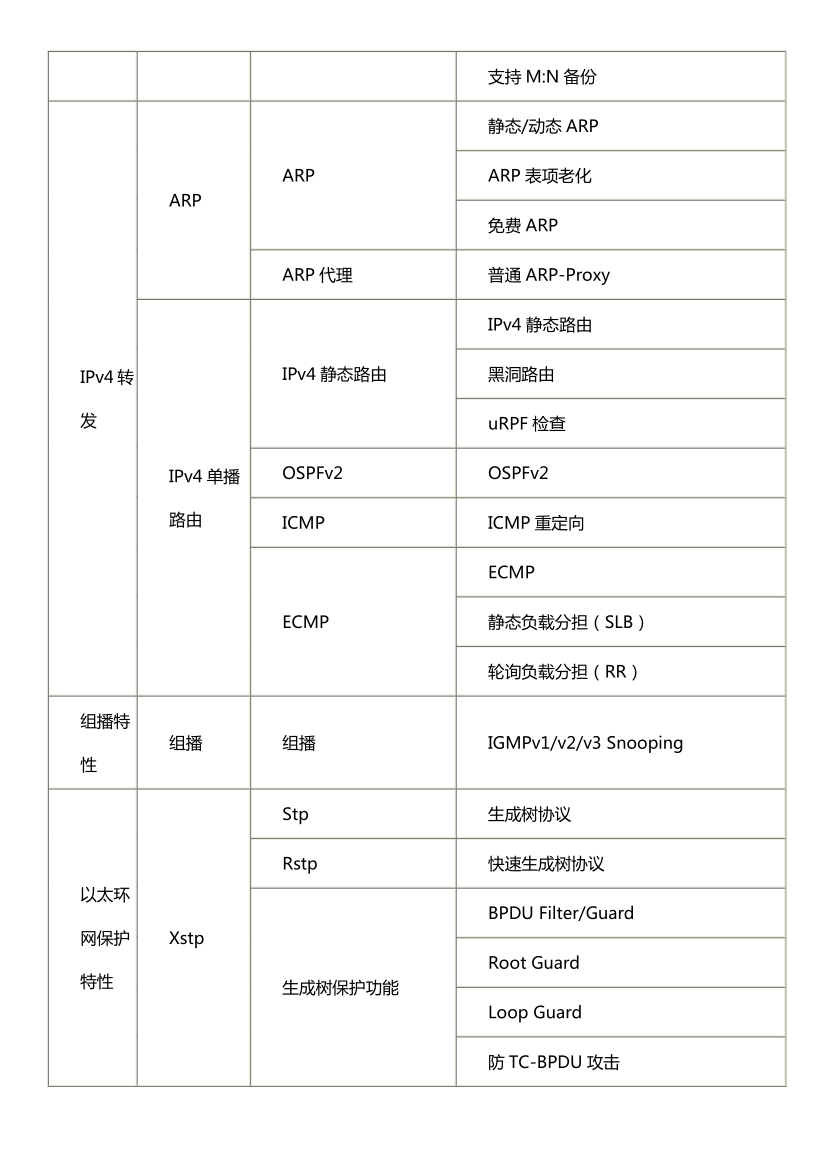

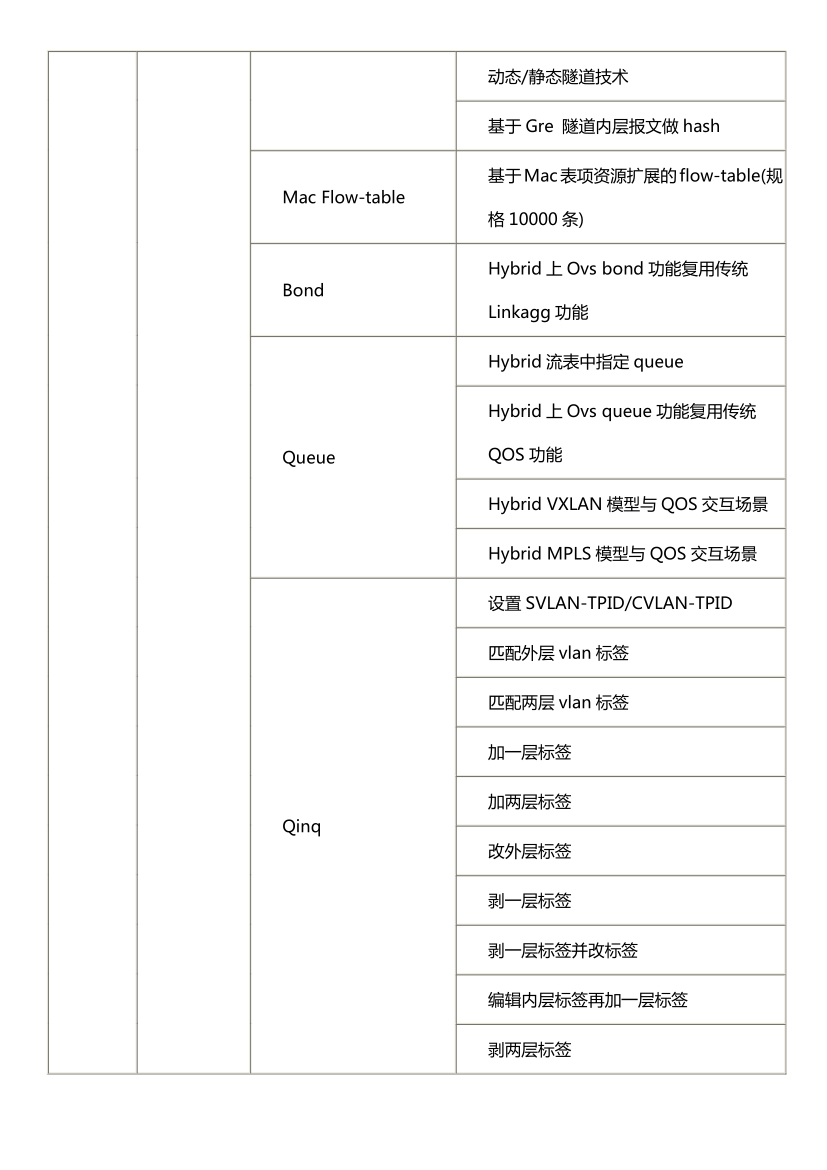

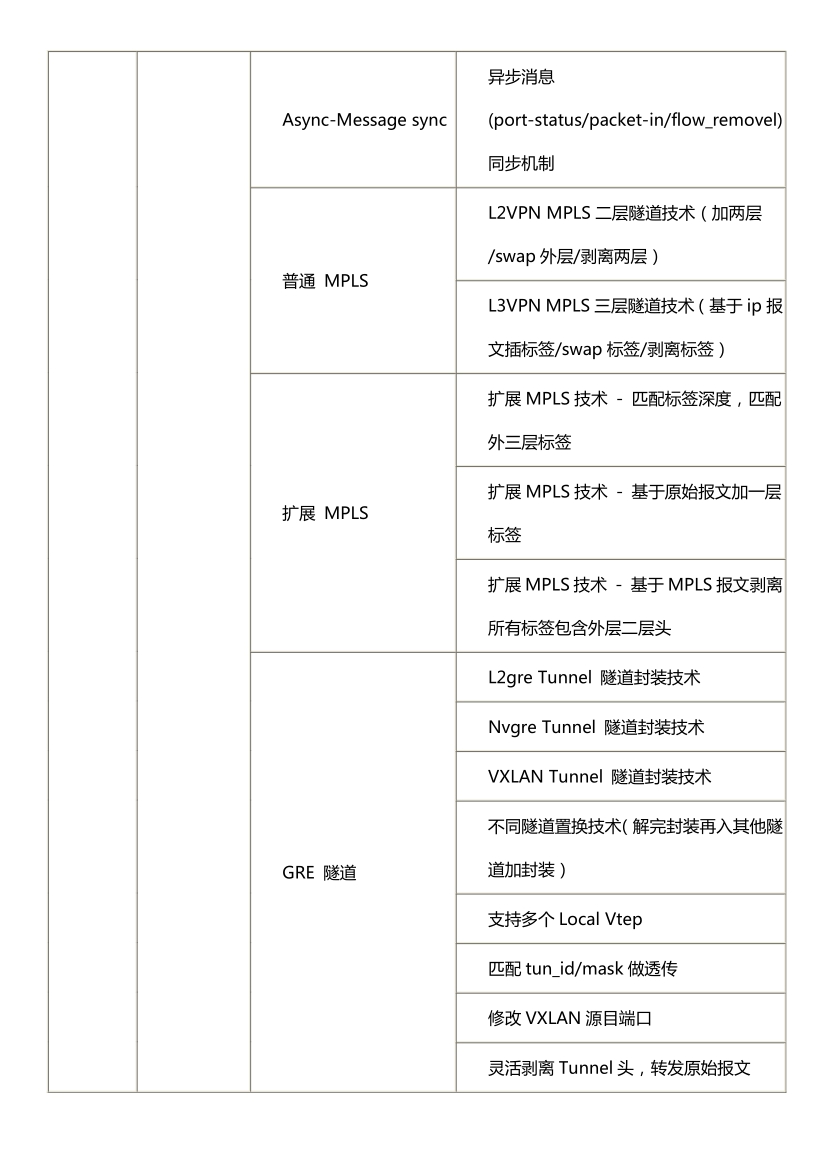

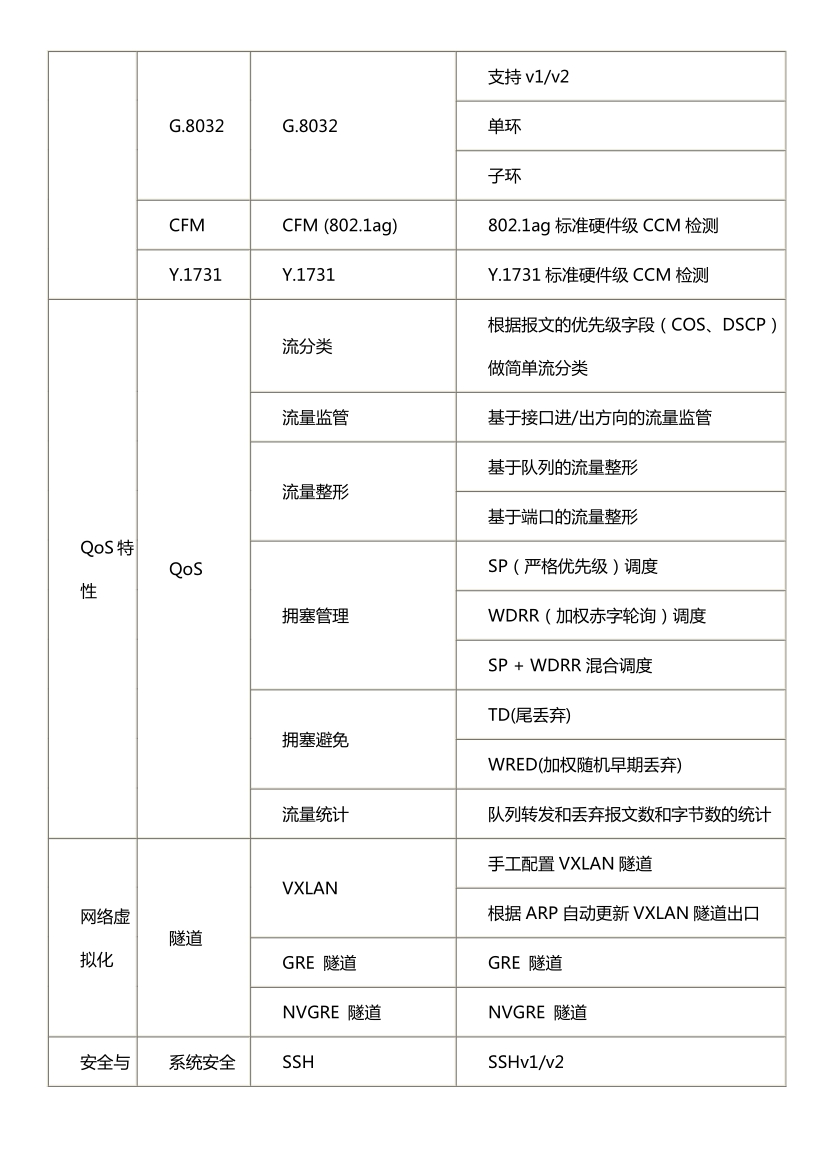

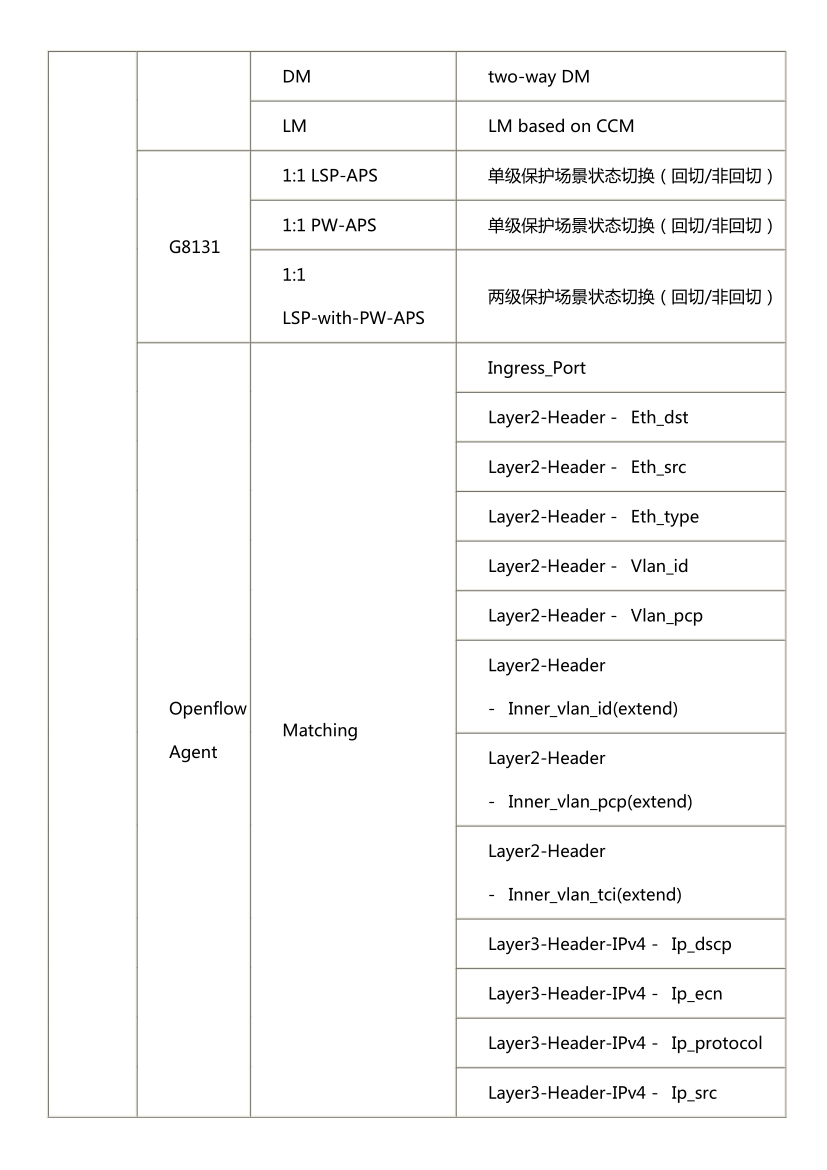

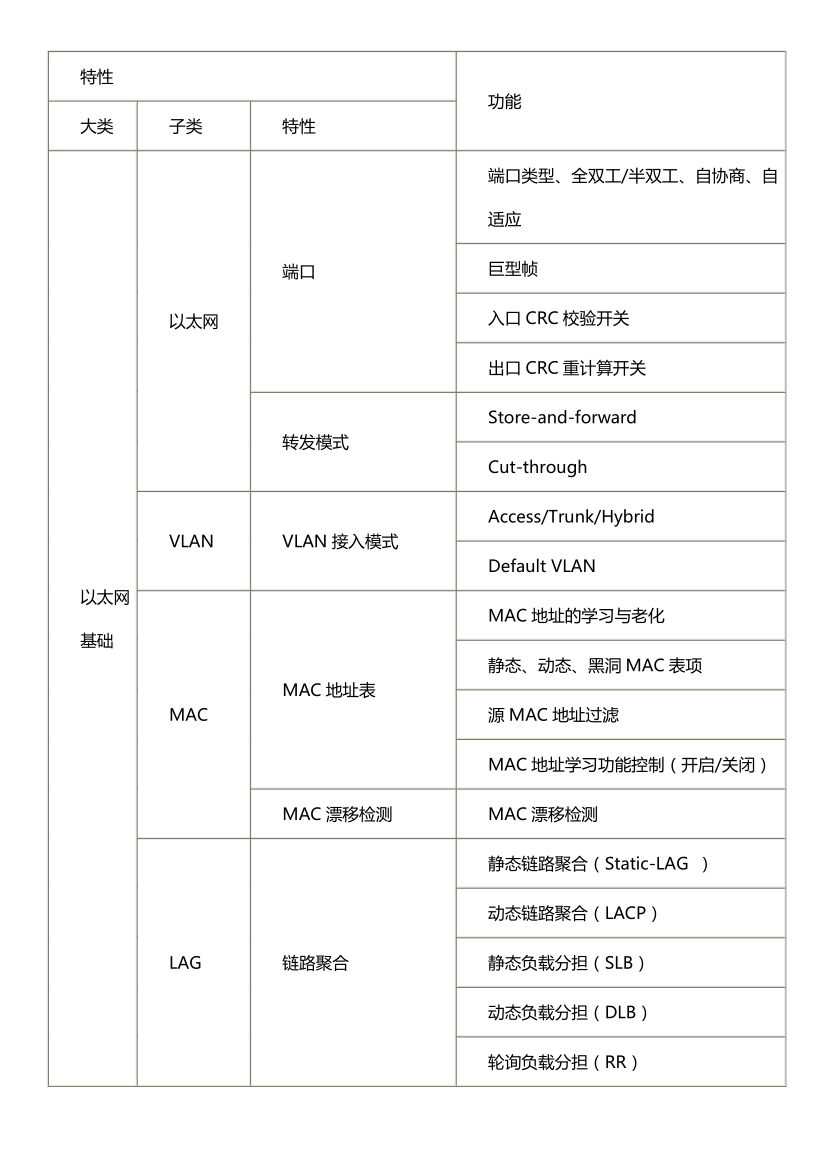

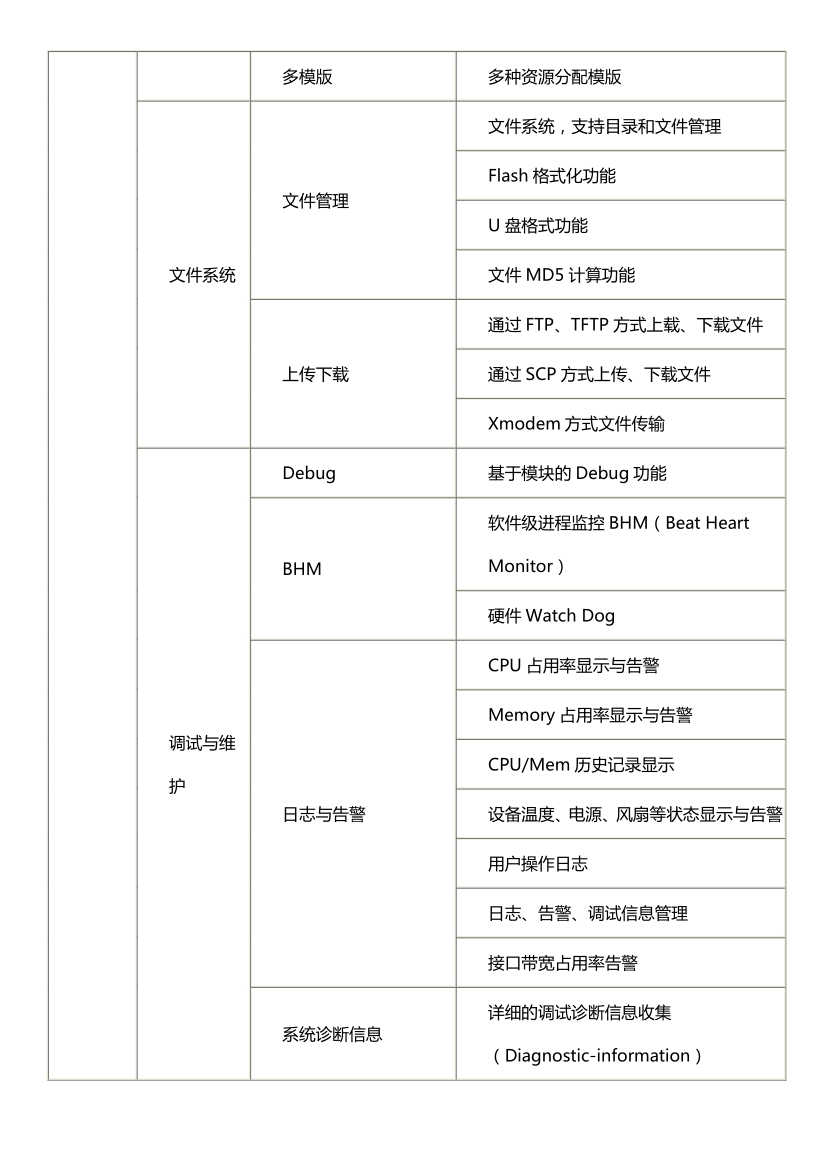

Software features:
