Product Introduction:
The Shengke V530-TAP switch (hereinafter referred to as "V530-TAP") supports multiple port forms and is designed to meet the network's needs for traffic analysis and monitoring.
The V530-TAP series is based on the Ethernet switching chip CTC7132. Support flexible and rich traffic aggregation, filtering, editing, and distribution functions.
The V530-TAP series switches use Shengke's self-developed CNOS system software platform, which supports TAP's M: N, symmetric HASH, shunt filtering, as well as timestamp and packet slicing. Support multiple management methods for easy deployment by users.
The V530-TAP currently offers the following configuration models: V530-24X2C-TAP, V530-24X2Q-TAP, V530-48T4X-TAP, V530-48S4X-TAP, V530-24T8X-TAP, V530-16T16XY2Q-TAP, V530-4T12X-TAP。
Figure 1: Shengke V530-TAP series switch
Product Features
Feature Highlights
Supports multiple port forms such as 1G/10G/25G/40G/100G, which can adapt to various network deployment needs.
Standard 1RU Box Solution

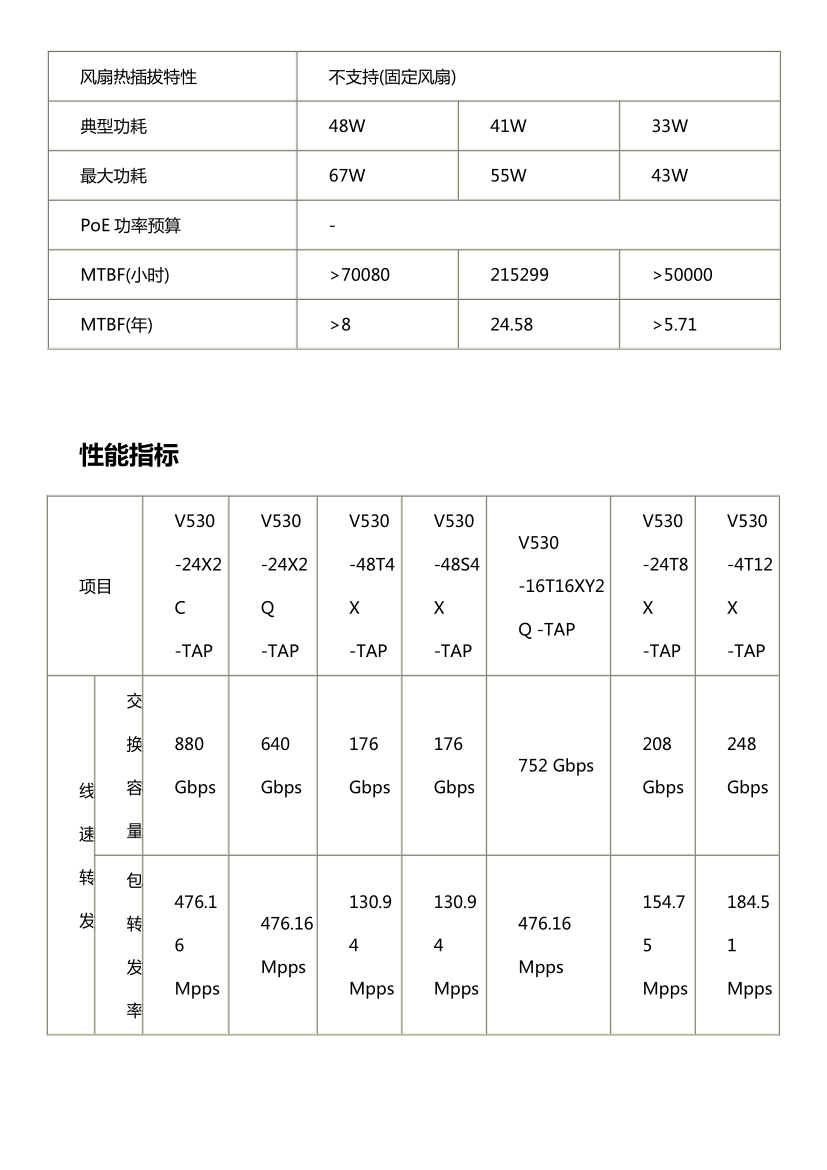

Up to 880 Gbps switching capacity
• Support Cut Through forwarding mode with fixed transmission delay
• Support traffic aggregation/replication/splitting
• Support message truncation
• Support IPinIP/MPLS/GTP/PPPOE decapsulation
• Support encapsulation and decapsulation of GRE/NVGRE/VxLAN/ERPAN
• Support M: N traffic replication
Support Ingress and Egress message filtering
• Supports timestamp and source port tagging
• Support ERSPAN encapsulation
• Support UDF matching
• Support UDF tunnel termination
• Supports IPFIX
• Support Port Group
• Support balanced load of same origin and same destination
• Support Round Robin load balancing
• Support filtering of IP quintuples, IP fragmentation analysis, user fields, etc
Support editing L2-L4 fields of messages
• Support Radius/TACAS+authentication and authorization
• Supports console, IP, SNMP, SSH, Open API, and WebUI management methods, and supports importing HTTPS certificates through WebUI
• Support file content verification md5sum
• Support configuring IPv6 addresses for management ports
• Support banner configuration
• Support the function of removing the header of any message
• Support packet capture
• Support LLDP
• Supports dual power redundancy backup
• Lower system power consumption
• Support port bandwidth utilization alarm function
Green and energy-saving system design
Adopting intelligent fan speed control scheme, supporting real-time power consumption detection, reducing operation and maintenance costs for customers, and creating a green and energy-saving network.
high reliability
On site pluggable modular power supply, supporting AC or DC 1+1 backup; The fan supports N+1 backup and intelligent speed regulation; Support real-time monitoring of the temperature, power supply, and fan status of the chipset.

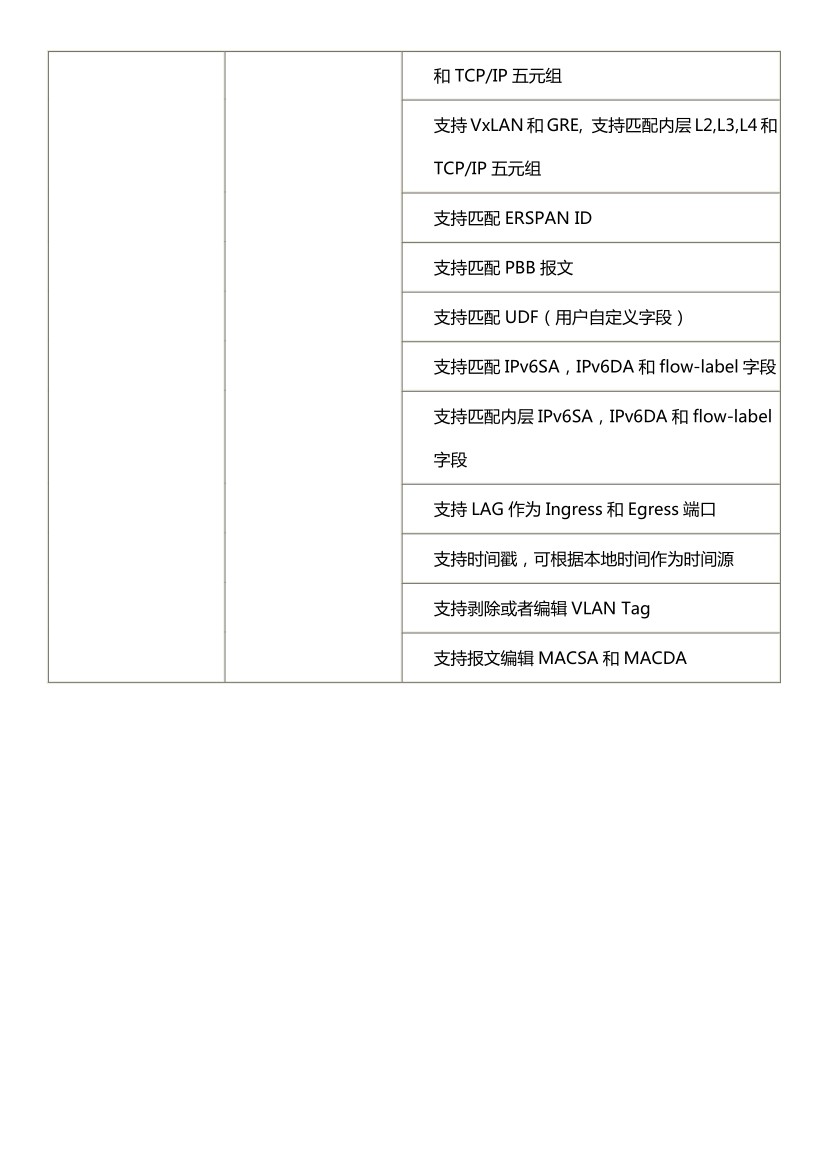

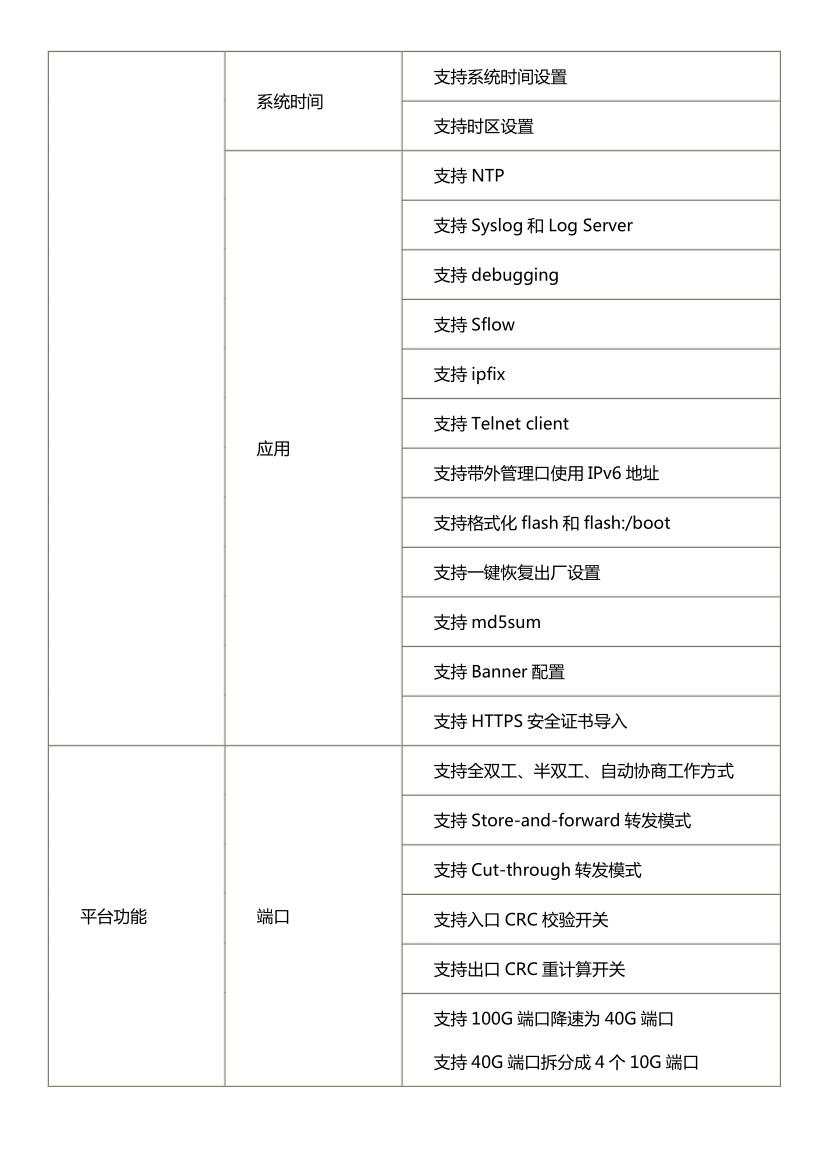

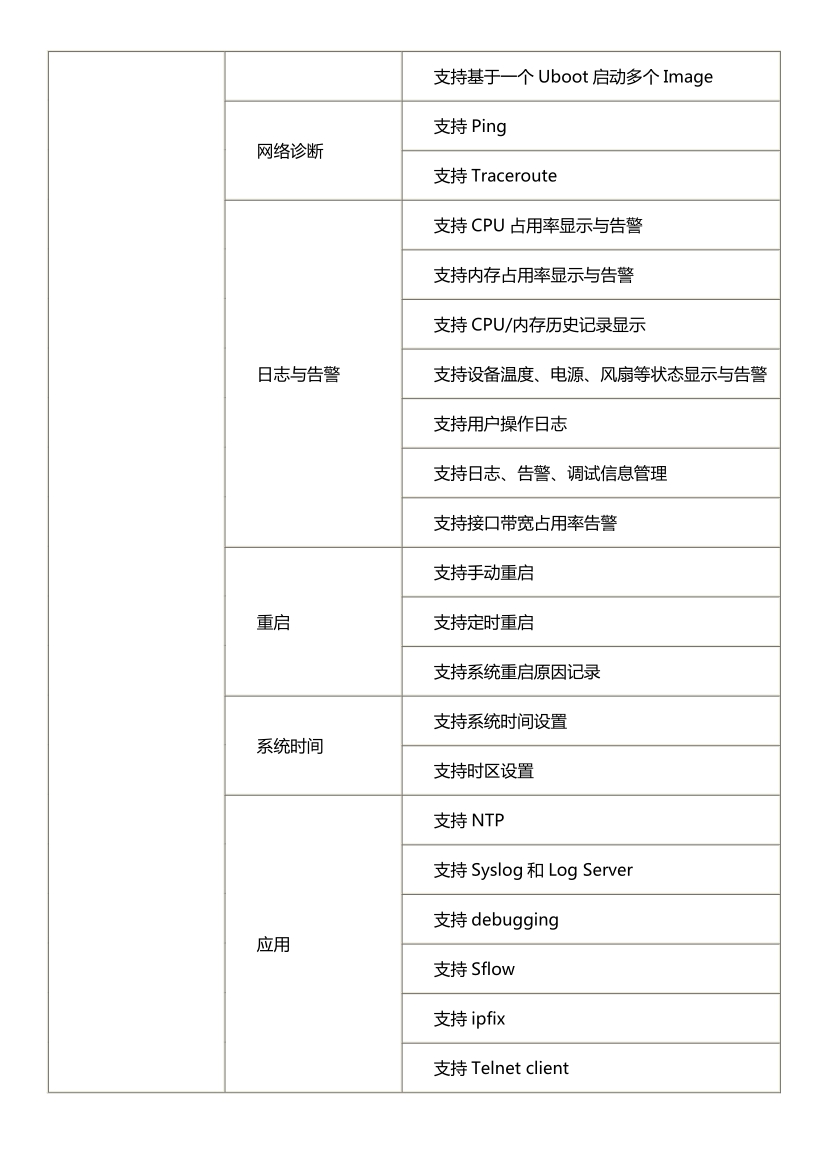

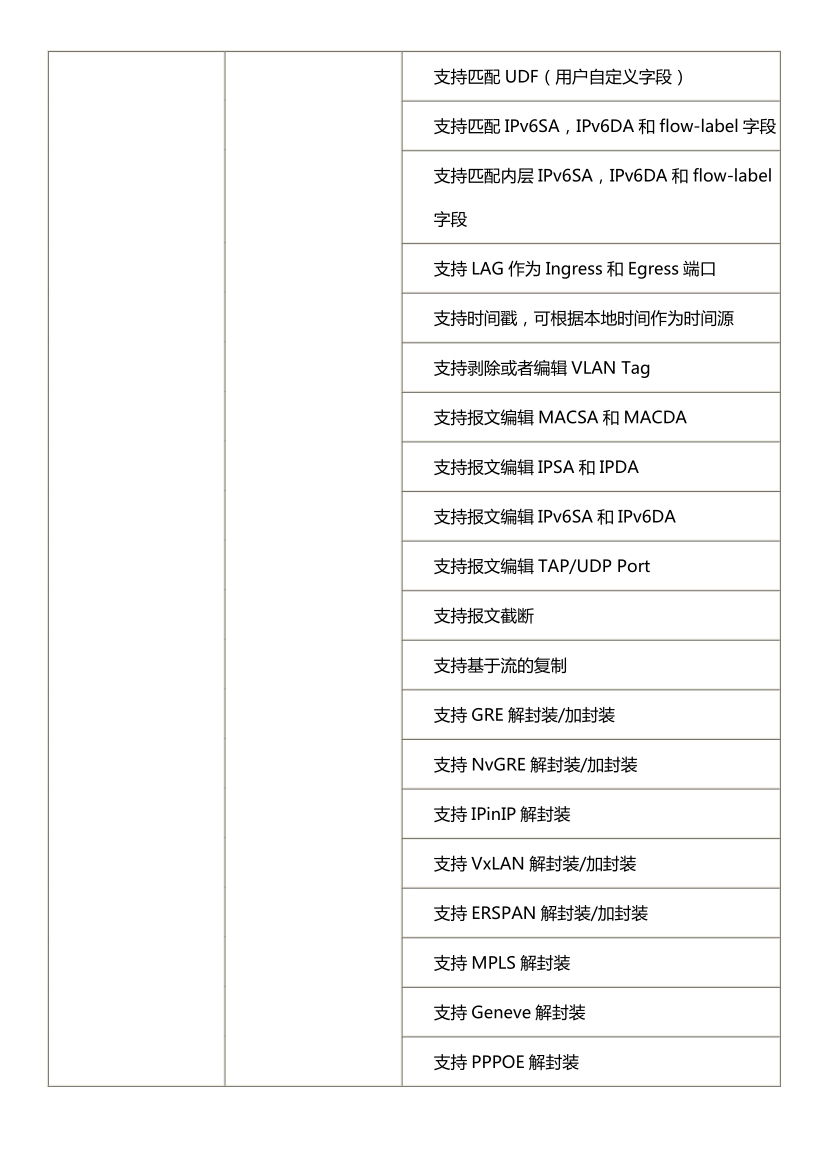

Product Features:

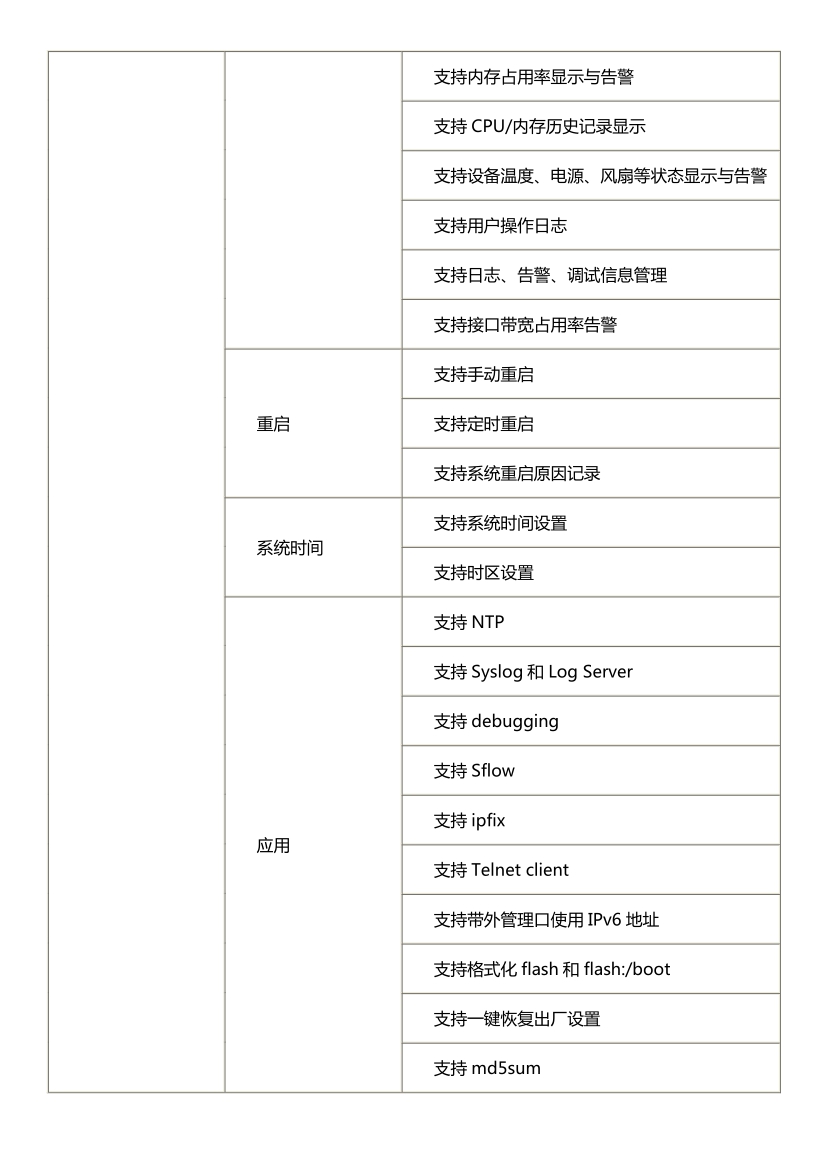

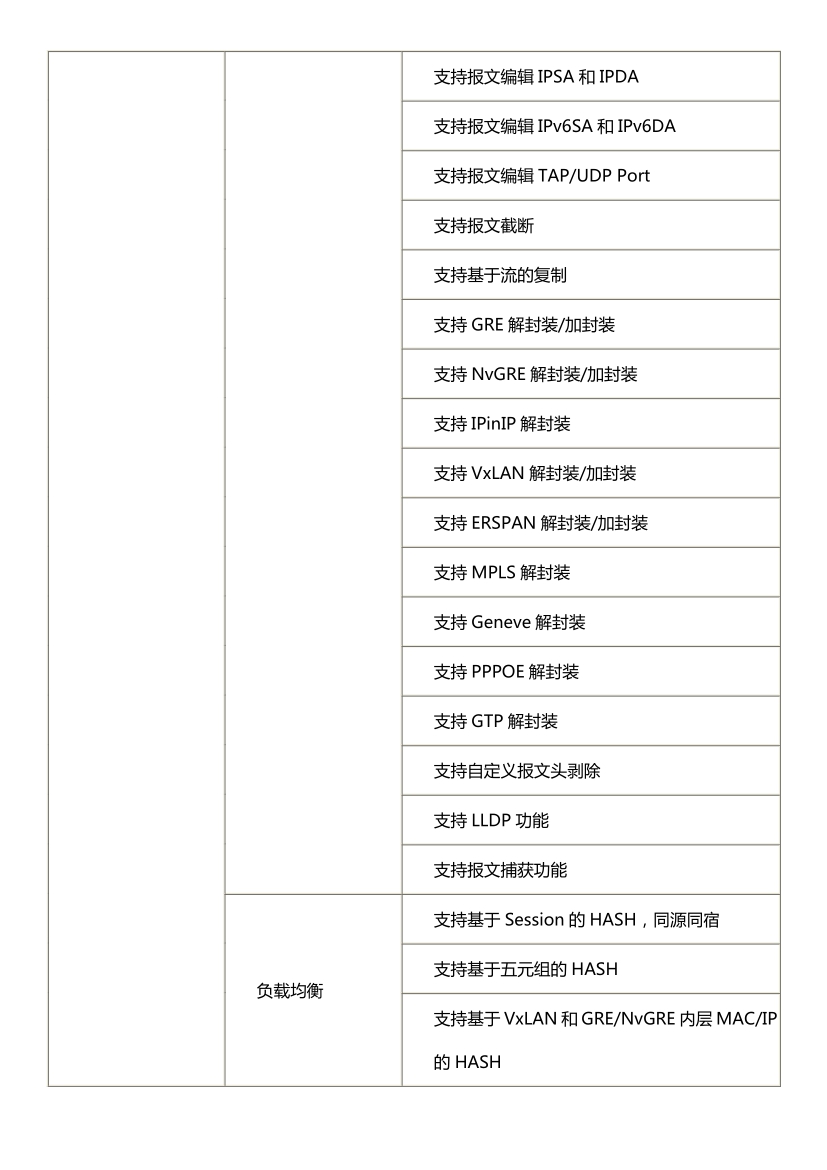

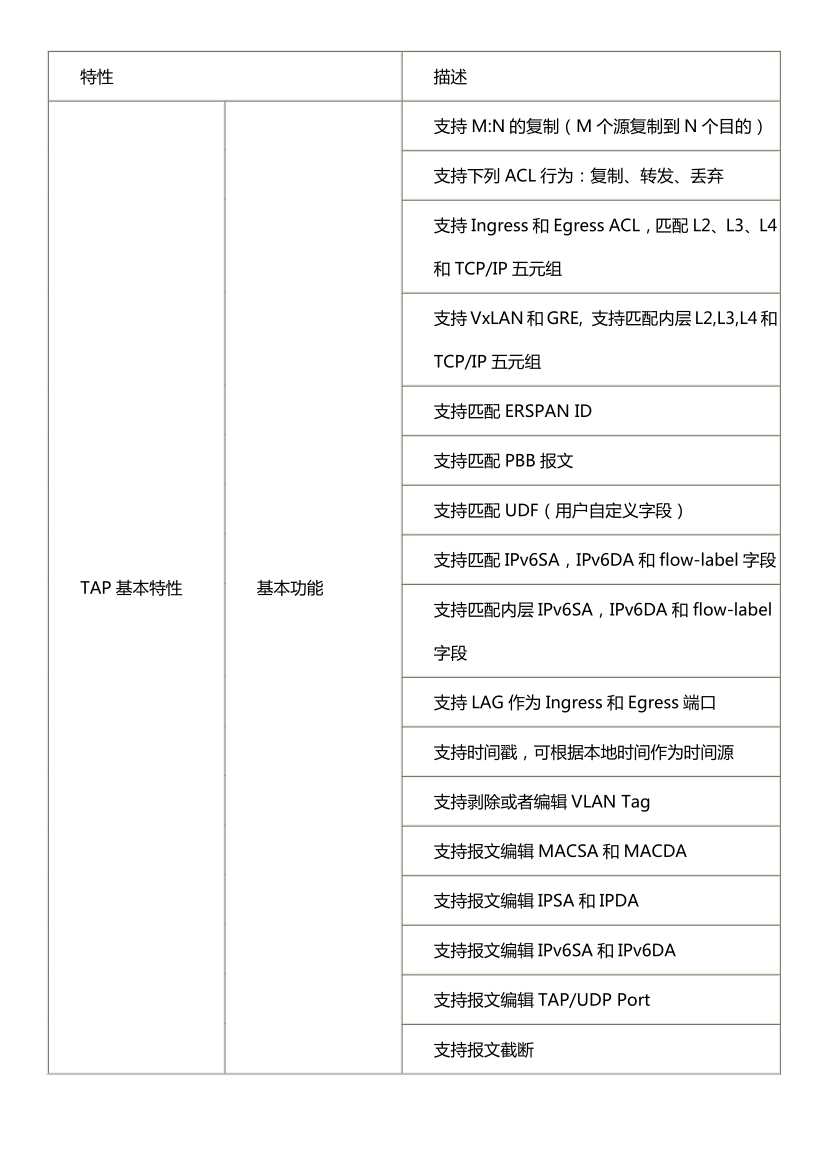

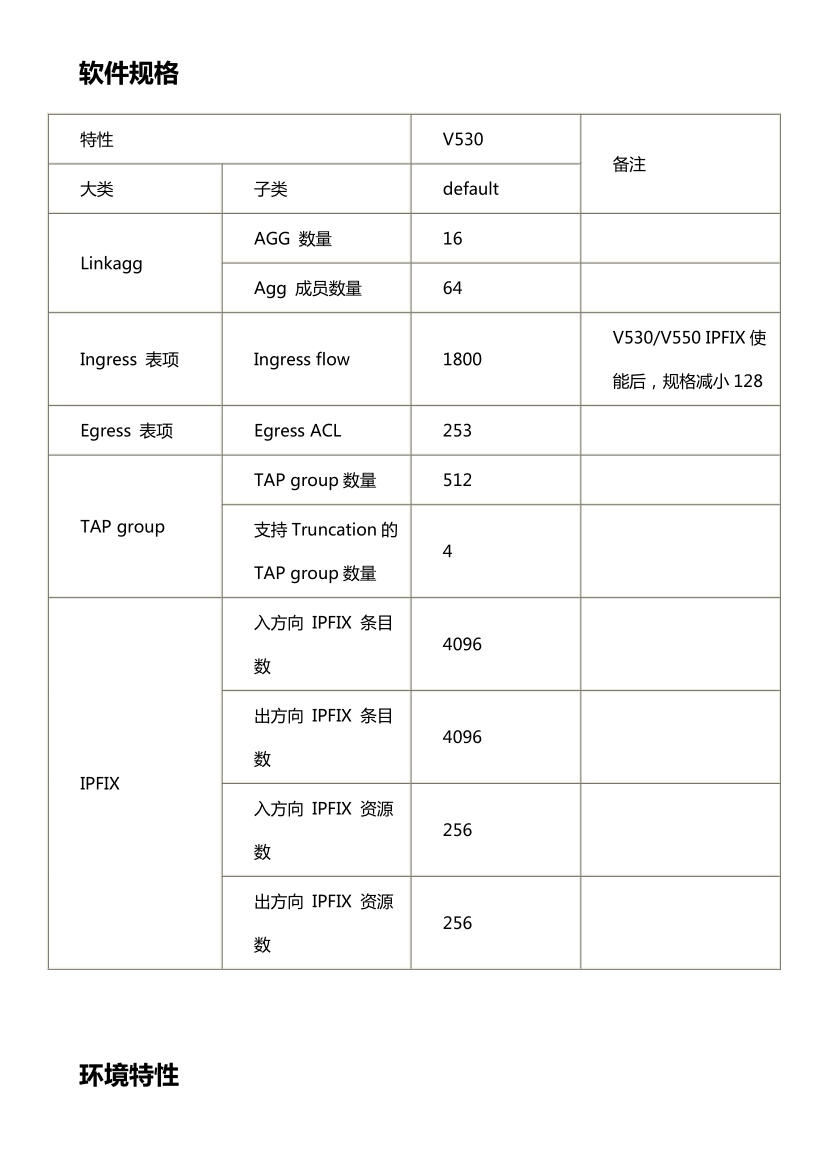

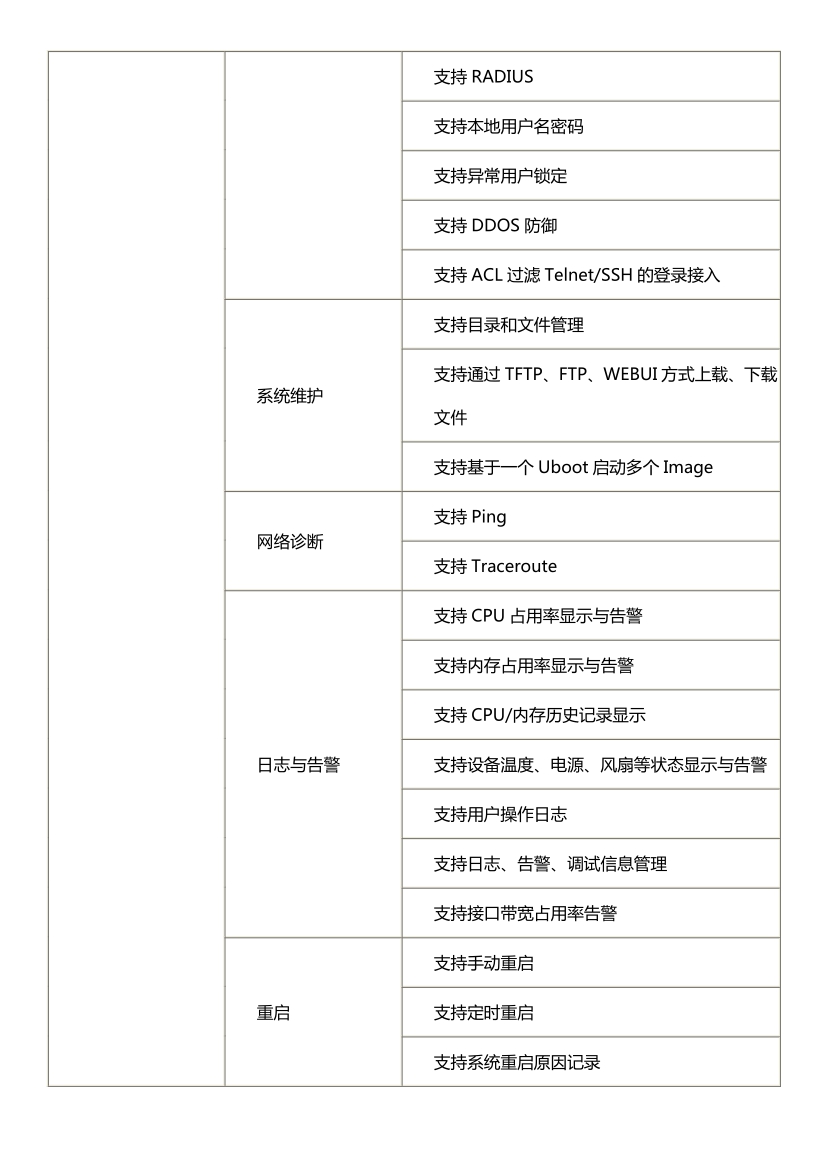

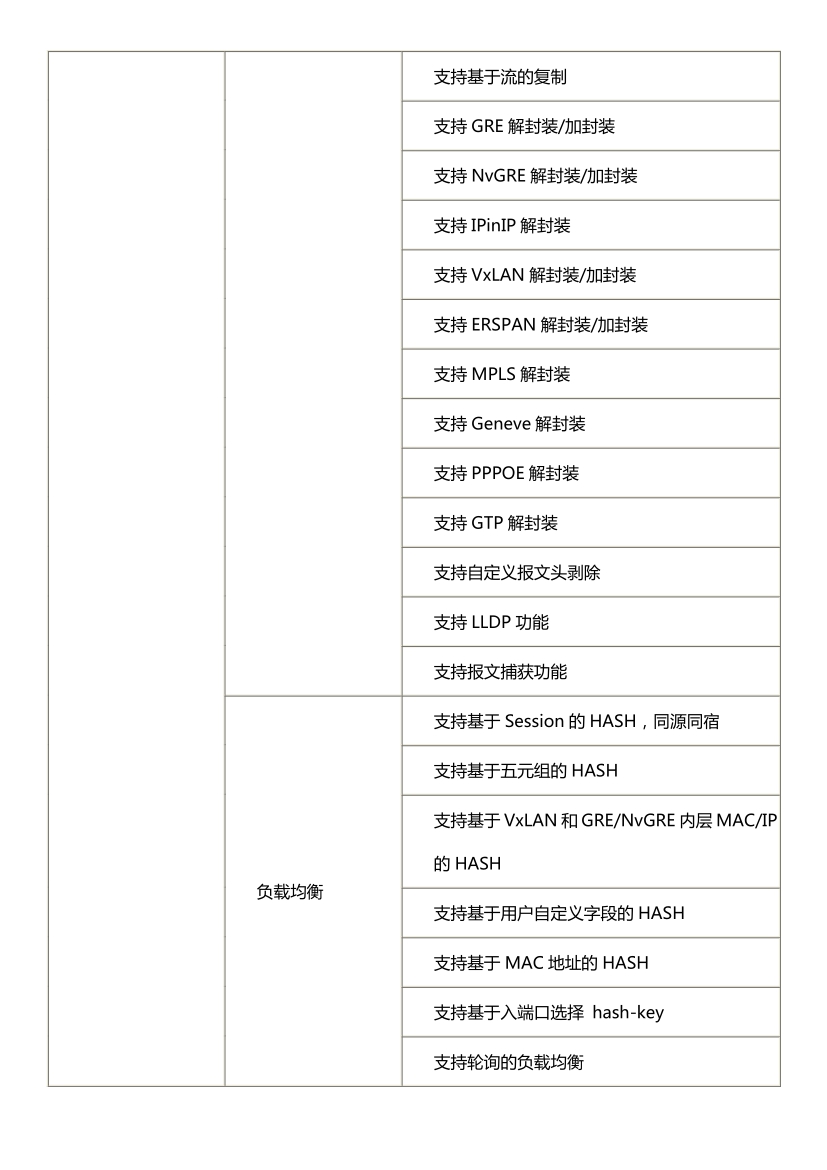

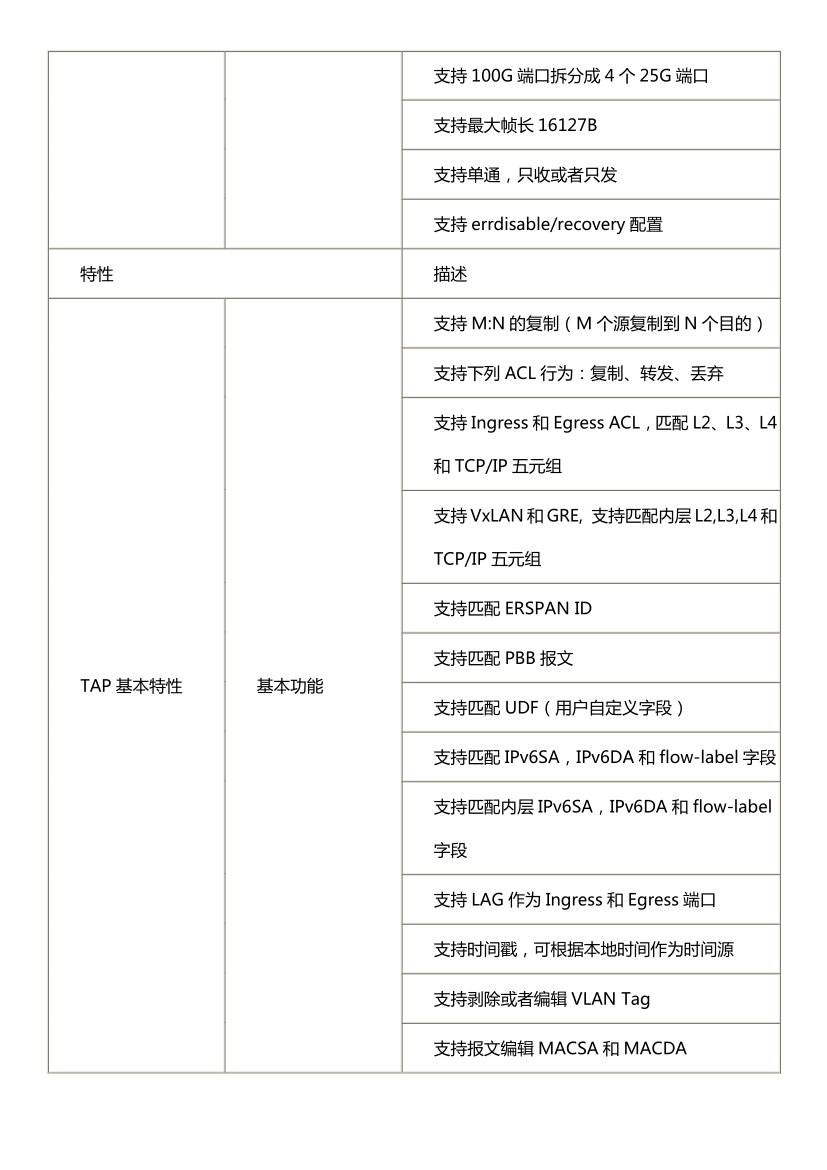

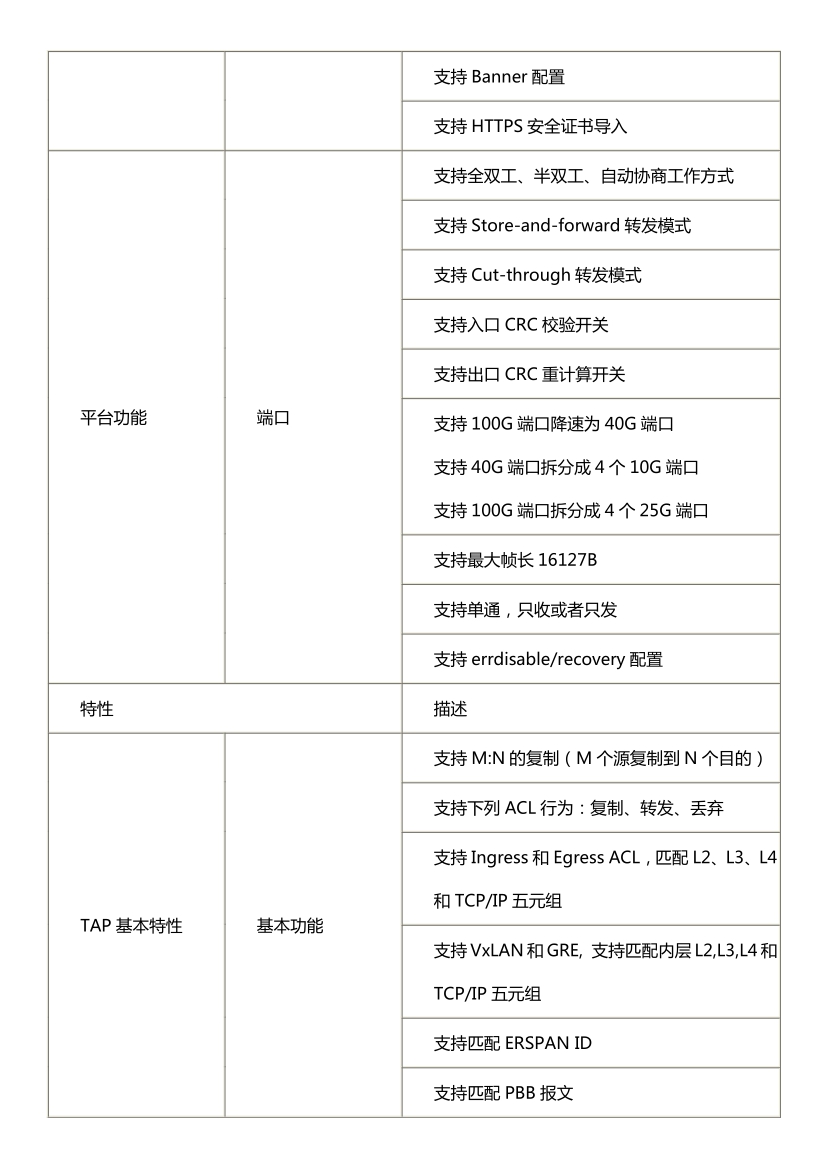

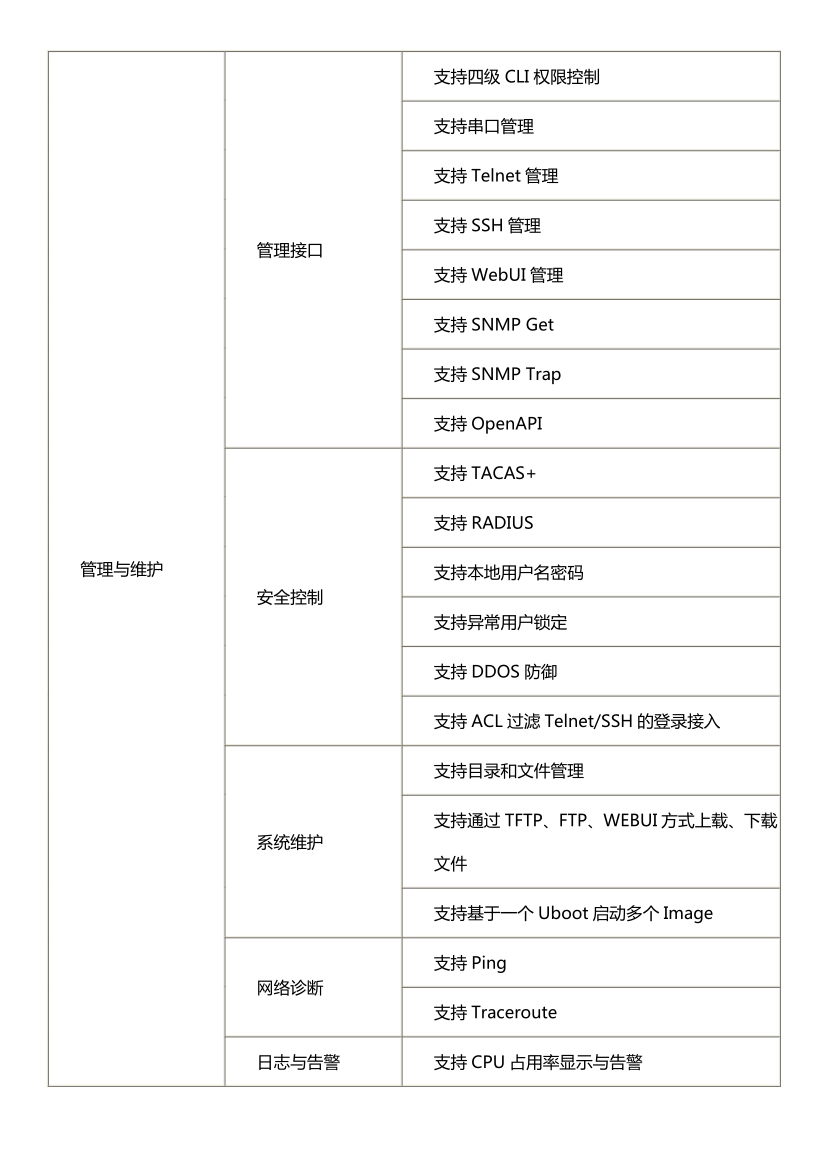

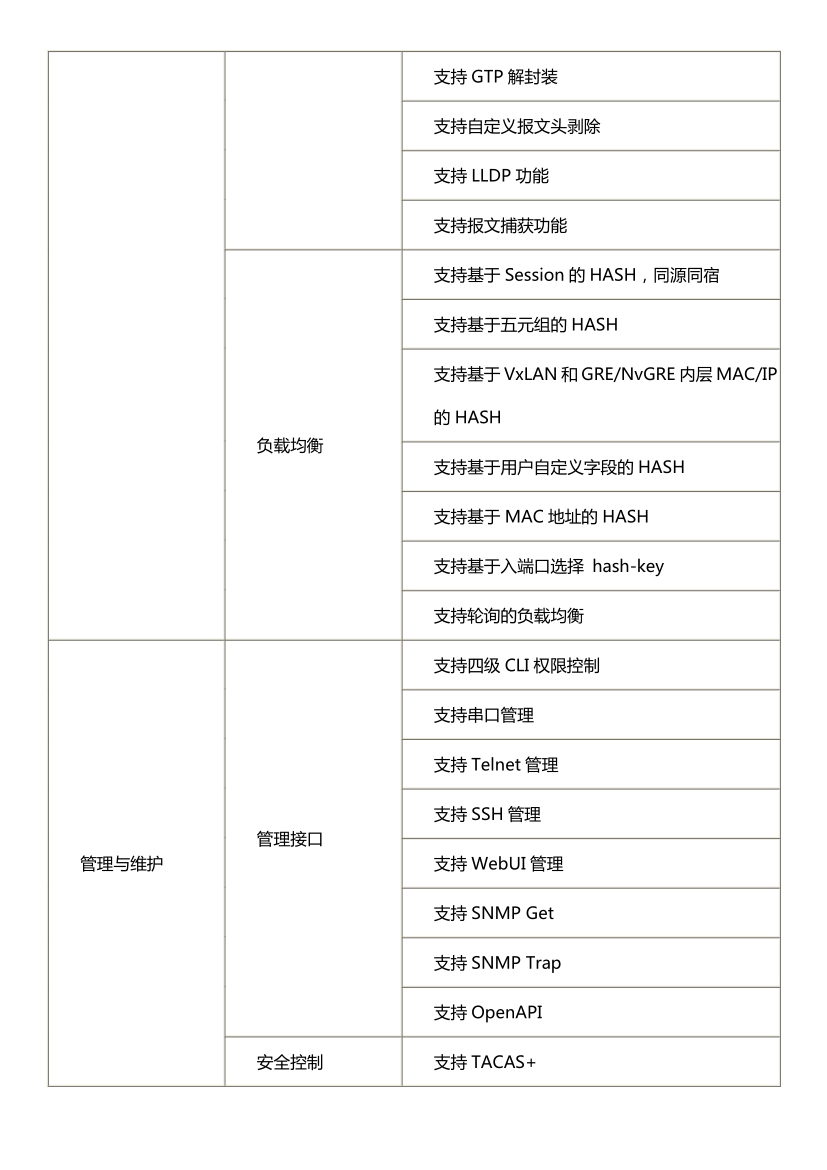

Software features:
